Constructing the hilt

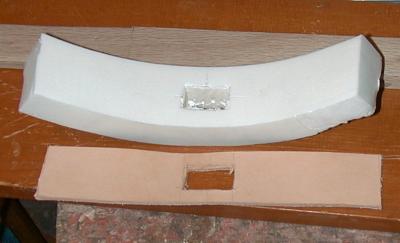

- Build the cross from closed cell foam or similar material.

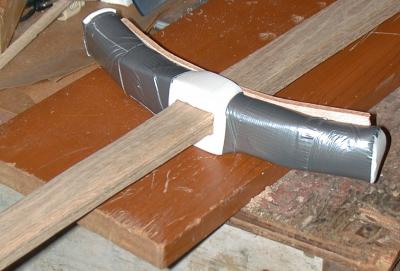

- The closed-cell foam is not stiff enough. Use duct tape to compress the foam into a smaller, denser bundle.
- Use a strip of leather to reinforce the closed-cell foam, so that it won't pull away from the blade.
- Slide it up from the pommel into position.

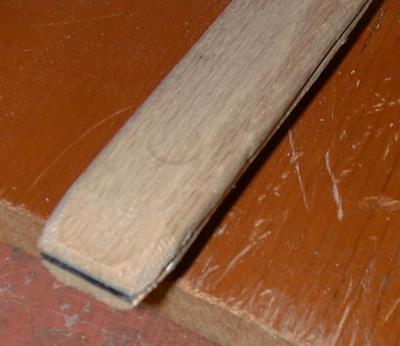

- Use a wood rasp or file to round the tip of the handle down to 1"
diameter.

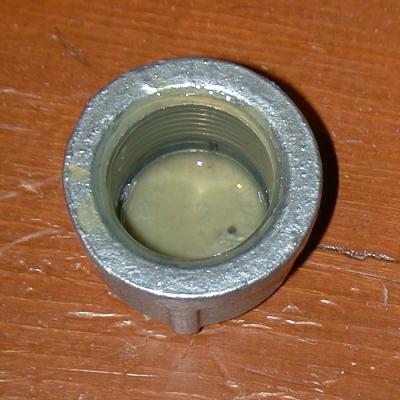

- Take the pipe cap and spread contact cement liberally in the threads.
(Concerns have been raised about the long-term safety of this pommel
weight. Stay turned for possible modifications.)

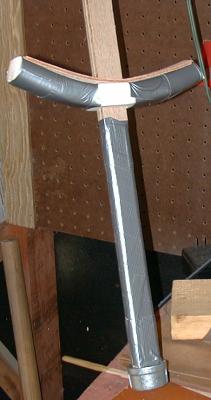

- Screw the pipe cap onto the pommel of the sword.
- Wrap the grip with three layers of duct tape in a spiral pattern with ~1/2"
of overlap. This helps even the grip and adds weight to the hilt end
of the sword.
- Duct tape the cross firmly in place. Cover all of the cross with duct tape to protect it.
- Wrap a piece of duct tape around the grip right at the cross to hold the tape that holds the cross.
- Wrap a piece of duct tape around the ricasso right at the cross to hold the
tape that holds the cross.

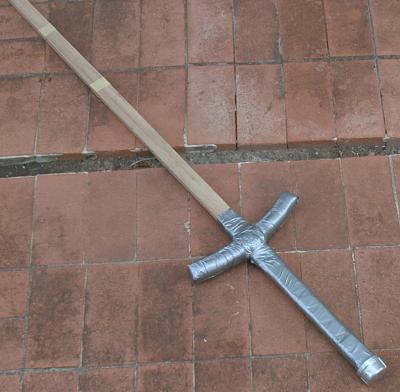

Note: Center of Balance: 16.5" from butt
